Chapter 13: Creating Ternary Plot with R

Hands-on Exercise 5

Author

Yee Weicong Mark

Published

May 14, 2026

Modified

May 14, 2026

13 Creating Ternary Plot with R

13.1 Overview

Ternary plots display three-part compositional data, meaning data where the parts must sum to a fixed total such as 1 or 100%. The display is an equilateral triangle with each side scaled from 0 to 1 and each vertex representing 100% of one component. This chapter covers static ternary plots with ggtern and interactive ones with plotly, then explores five design alternatives.

13.2 Installing and Launching R Packages

Three R packages are required:

  1. ggtern, a ggplot2 extension specially designed for ternary diagrams
  2. plotly, used here for its native scatterternary trace type which is preferred over ggplotly() conversion because the latter does not fully translate ggtern geometries
  3. tidyverse for data import and shape transformation

knitr is also loaded so kable() can produce clean previews.

pacman::p_load(plotly, ggtern, tidyverse, knitr)
NoteThings to learn from the code chunk above

ggtern masks several ggplot2 functions when loaded, because the package overrides standard ggplot internals to support the triangular coordinate system. If conflicts arise, explicit namespacing with ggplot2:: or ggtern:: resolves them.

13.3 Data Preparation

13.3.1 The Data

The dataset respopagsex2000to2018_tidy.csv is from the Singapore Department of Statistics. It records resident population by planning area, subzone, age group, sex, and year from 2000 to 2018.

13.3.2 Importing Data

pop_data <- read_csv("data/respopagsex2000to2018_tidy.csv")

kable(head(pop_data))
PA SZ AG Year Population
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2011 290
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2012 270
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2013 260
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2014 250
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2015 260
Ang Mo Kio Ang Mo Kio Town Centre AGE0-4 2016 250

13.3.3 Preparing the Data

To plot a ternary diagram, the data must be reshaped from long to wide format and three compositional measures derived: YOUNG (under 25), ACTIVE (25 to 64), and OLD (65 and above).

WarningA bug in the R4VA recipe worth fixing

The R4VA tutorial derives the three measures using positional column indexing:

mutate(YOUNG = rowSums(.[4:8])) %>%
mutate(ACTIVE = rowSums(.[9:16])) %>%
mutate(OLD = rowSums(.[17:21]))

This assumes the columns from pivot_wider() come out in natural age order, but they do not. The age bands in the source data are named AGE0-4, AGE05-9, AGE10-14, and so on. After pivot_wider(), the columns appear in first-appearance order rather than alphabetical or natural age order. Because AGE05-9 first appears far down the source file, it ends up at column 13 instead of column 5.

Applied to the columns as they actually come out, the positional recipe produces:

  1. YOUNG (cols 4 to 8) sums AGE0-4 + AGE10-14 + AGE15-19 + AGE20-24 + AGE25-29. Children aged 5 to 9 are missing, and 25-to-29-year-olds are mistakenly included.
  2. ACTIVE (cols 9 to 16) sums AGE30-34 through AGE45-49, then AGE05-9 (column 13), then AGE50-54 through AGE60-64. Children aged 5 to 9 are mixed into the working-age group, and 25-to-29-year-olds are missing.
  3. OLD (cols 17 to 21) sums AGE65-69 through AGE85over. This one is correct.

A quick verification: for Ang Mo Kio Town Centre in 2018, the tutorial recipe reports YOUNG = 1,360. Adding the actual under-25 bands gives 180 + 270 + 320 + 300 + 260 = 1,330, not 1,360. The 30-person discrepancy is AGE25-29 (300) being wrongly included while AGE05-9 (270) is excluded.

The fix is to select columns by name using rowSums(across(c(...))). The backticks handle hyphens in the column names.

agpop_mutated <- pop_data %>%
  mutate(Year = as.character(Year)) %>%
  pivot_wider(names_from = AG, values_from = Population) %>%
  mutate(
    YOUNG = rowSums(across(c(`AGE0-4`, `AGE05-9`, `AGE10-14`, `AGE15-19`, `AGE20-24`))),
    ACTIVE = rowSums(across(c(`AGE25-29`, `AGE30-34`, `AGE35-39`, `AGE40-44`, `AGE45-49`,
                              `AGE50-54`, `AGE55-59`, `AGE60-64`))),
    OLD = rowSums(across(c(`AGE65-69`, `AGE70-74`, `AGE75-79`, `AGE80-84`, `AGE85over`))),
    TOTAL = YOUNG + ACTIVE + OLD
  ) %>%
  filter(Year == 2018) %>%
  filter(TOTAL > 0)

kable(head(agpop_mutated))
PA SZ Year AGE0-4 AGE10-14 AGE15-19 AGE20-24 AGE25-29 AGE30-34 AGE35-39 AGE40-44 AGE45-49 AGE05-9 AGE50-54 AGE55-59 AGE60-64 AGE65-69 AGE70-74 AGE75-79 AGE80-84 AGE85over YOUNG ACTIVE OLD TOTAL
Ang Mo Kio Ang Mo Kio Town Centre 2018 180 320 300 260 300 270 330 430 470 270 360 310 300 270 190 150 60 60 1330 2770 730 4830
Ang Mo Kio Cheng San 2018 1060 1080 1260 1400 1880 1940 2300 2090 2180 1080 2160 2150 2270 2130 1370 980 560 440 5880 16970 5480 28330
Ang Mo Kio Chong Boon 2018 900 1030 1220 1380 1760 1830 1920 1900 1910 900 2070 2140 2170 2050 1570 1170 640 530 5430 15700 5960 27090
Ang Mo Kio Kebun Bahru 2018 720 1010 1120 1230 1460 1330 1540 1700 1830 850 1880 1810 1750 1700 1240 870 540 430 4930 13300 4780 23010
Ang Mo Kio Sembawang Hills 2018 220 380 500 550 500 300 290 420 550 310 550 560 450 410 290 220 140 140 1960 3620 1200 6780
Ang Mo Kio Shangri-La 2018 550 670 780 950 1080 990 1100 1140 1230 630 1350 1420 1290 1150 830 680 360 340 3580 9600 3360 16540
NoteThings to learn from the code chunk above

pivot_wider() replaces the deprecated spread() function. It widens the dataset so each age band becomes its own column.

rowSums(across(c(...))) selects columns by name rather than by position. Backticks around the names handle the hyphens. TOTAL = YOUNG + ACTIVE + OLD is more transparent than the original rowSums(.[22:24]) and cannot break if upstream columns are reordered.

filter(Year == 2018) restricts the analysis to a single cross-section, and filter(TOTAL > 0) removes subzones with zero population.

13.4 Plotting Ternary Diagram with R

13.4.1 Plotting a Static Ternary Diagram

The ggtern() function works like ggplot() but expects three positional aesthetics: x, y, and z, mapping to the three vertices of the triangle.

ggtern(data = agpop_mutated,
       aes(x = YOUNG, y = ACTIVE, z = OLD)) +
  geom_point()
NoteThings to learn from the code chunk above

ggtern() automatically constructs the triangular coordinate system. The three aesthetics x, y, and z map to the three vertices, and the package internally normalises each row so the three values sum to 1. Most standard ggplot2 geoms have ternary equivalents.

TipReading the plot

Each point is one Singapore subzone in 2018. The cluster sits closer to the ACTIVE vertex (right side) than to YOUNG or OLD, which means most subzones are dominated by working-age residents. A small group of points drifts towards the OLD vertex, indicating subzones with disproportionately ageing populations. Subzones near the YOUNG vertex are rarer in 2018, consistent with the overall demographic transition.

This is the analytical payoff of a ternary plot. A scatterplot of YOUNG against OLD would lose the ACTIVE dimension, and a parallel coordinates plot would lose the immediate visual sense of which subzones lean towards which extreme.

13.4.2 Adding Title and Theme

The default theme can be replaced with theme_rgbw() for cleaner gridlines and a title added via labs().

ggtern(data = agpop_mutated,
       aes(x = YOUNG, y = ACTIVE, z = OLD)) +
  geom_point() +
  labs(title = "Singapore population structure by subzone, 2018",
       subtitle = "Each point is one subzone; vertices represent 100% of the named age group") +
  theme_rgbw()
NoteThings to learn from the code chunk above

theme_rgbw() is one of several ggtern themes (others include theme_bw(), theme_classic(), theme_dark()).

13.4.3 Plotting an Interactive Ternary Diagram

plot_ly() supports a native scatterternary trace type, which is preferred over ggplotly(ggtern_plot) because the latter does not faithfully translate ggtern geometry.

# Reusable function for annotation
label <- function(txt) {
  list(
    text = txt,
    x = 0.1, y = 1,
    ax = 0, ay = 0,
    xref = "paper", yref = "paper",
    align = "center",
    font = list(family = "serif", size = 15, color = "white"),
    bgcolor = "#b3b3b3", bordercolor = "black", borderwidth = 2
  )
}

# Reusable function for axis formatting
axis <- function(txt) {
  list(
    title = txt,
    tickformat = ".0%",
    tickfont = list(size = 10)
  )
}

ternaryAxes <- list(
  aaxis = axis("Young"),
  baxis = axis("Active"),
  caxis = axis("Old")
)

plot_ly(
  agpop_mutated,
  a = ~YOUNG,
  b = ~ACTIVE,
  c = ~OLD,
  color = I("black"),
  type = "scatterternary"
) %>%
  layout(
    annotations = label("Singapore subzones, 2018"),
    ternary = ternaryAxes
  )
NoteThings to learn from the code chunk above

plot_ly() uses a, b, c (not x, y, z) for ternary aesthetics, which is a quirk of the underlying plotly.js API. tickformat = ".0%" formats the axis ticks as percentages with no decimals. The label() and axis() helpers are reusable, so defining them once avoids repetition if multiple ternary plots are produced.

TipReading the plot

The interactive version supports zoom, pan, and hover-to-identify. For a dataset with hundreds of subzones, this turns a dense static cluster into an explorable map. Hovering over an outlier subzone (one nearest the OLD vertex, for instance) reveals the subzone name directly, rather than guessing from position alone.

13.5 Exploring Alternatives

Some variations below to enhance the plot.

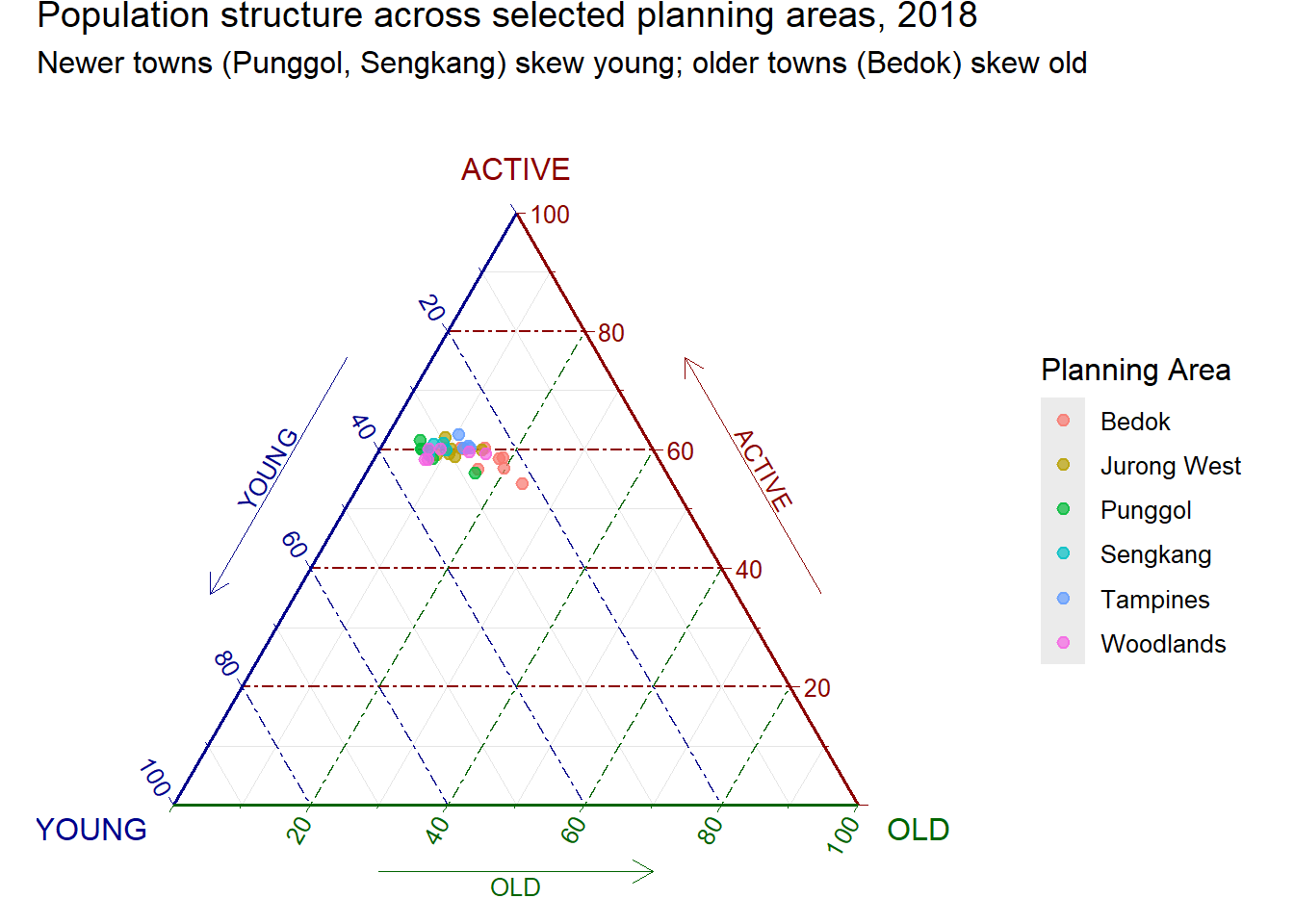

13.5.1 Alternative 1: Colouring by Planning Area

Adding colour reveals whether subzones cluster geographically.

agpop_top <- agpop_mutated %>%
  group_by(PA) %>%
  filter(n() >= 3) %>%
  ungroup() %>%
  filter(PA %in% c("Bedok", "Tampines", "Jurong West", "Woodlands", "Sengkang", "Punggol"))

ggtern(data = agpop_top,
       aes(x = YOUNG, y = ACTIVE, z = OLD, colour = PA)) +
  geom_point(size = 2, alpha = 0.7) +
  labs(title = "Population structure across selected planning areas, 2018",
       subtitle = "Newer towns (Punggol, Sengkang) skew young; older towns (Bedok) skew old",
       colour = "Planning Area") +
  theme_rgbw()
NoteThings to learn from the code chunk above

Subsetting to six planning areas keeps the colour count manageable. The chosen planning areas span the development timeline of Singapore public housing, from mature estates (Bedok, Tampines) to recent towns (Sengkang, Punggol). alpha = 0.7 mitigates overplotting where points cluster densely.

TipReading the plot

Punggol and Sengkang sit visibly closer to the YOUNG vertex than Bedok. This matches the policy intuition that newer Built-To-Order towns attract young families, while mature estates ageing in place skew towards the OLD vertex.

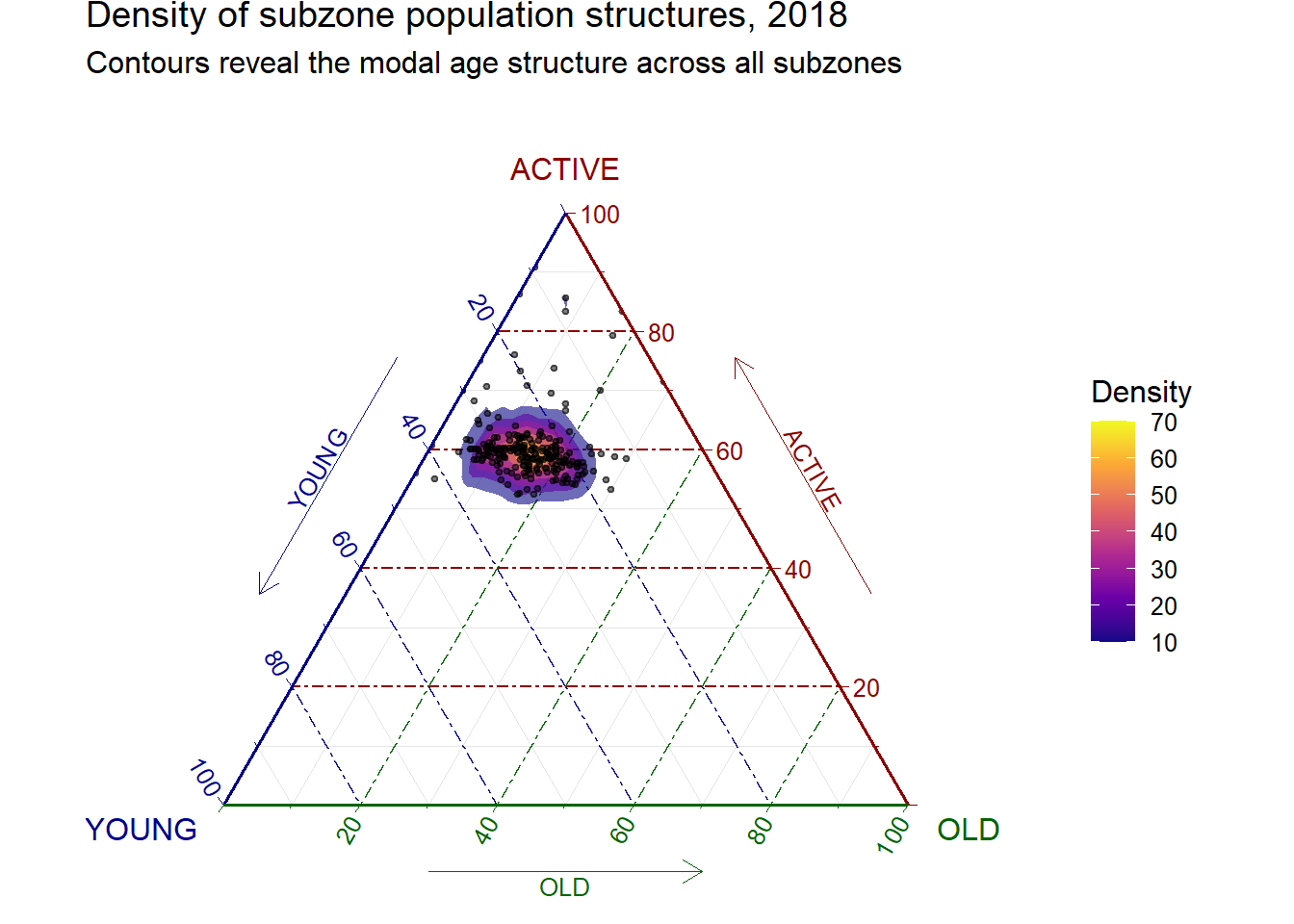

13.5.2 Alternative 2: Density Contours

stat_density_tern() adds 2D density contours over the triangle, similar to a geom_density_2d() overlay on a Cartesian scatter.

ggtern(data = agpop_mutated,
       aes(x = YOUNG, y = ACTIVE, z = OLD)) +
  stat_density_tern(geom = "polygon",
                    aes(fill = after_stat(level)),
                    alpha = 0.6) +
  geom_point(size = 0.8, alpha = 0.5) +
  scale_fill_viridis_c(option = "C") +
  labs(title = "Density of subzone population structures, 2018",
       subtitle = "Contours reveal the modal age structure across all subzones",
       fill = "Density") +
  theme_rgbw()
NoteThings to learn from the code chunk above

stat_density_tern() is the ternary analogue of stat_density_2d(). It estimates a 2D density on the triangular surface. Layering geom_point() underneath the contours preserves the raw data. scale_fill_viridis_c(option = "C") applies the plasma palette.

TipReading the plot

The contours highlight a single dense mode somewhere in the ACTIVE-dominant zone, which is the typical Singapore subzone in 2018. Outliers, visible as points outside the densest contours, are the cases worth following up on.
